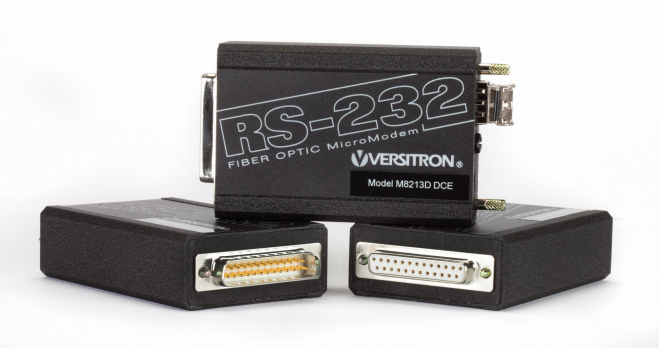

The VERSITRON M82xxD series RS232 to fiber converter is designed to ensure secure and reliable transmission of serial data over fiber optic media. This converter enables the seamless integration of RS232 serial devices with fiber optic technology, providing a robust solution for long-distance communication needs.
The RS-232 to fiber optic converter ensures consistent, transparent data transmission with minimal impact on the transmitted or received signals. This transparency, along with the ability to transmit over long distances-up to 2 km with multimode fiber and 20 km with single-mode fiber-makes this serial-to-fiber optic converter a versatile and reliable solution for diverse operational needs and critical communication requirements.
The RS 232 over fiber converter features a DB9 or DB25 connector for the digital interface and an LC connector for the fiber optic interface, ensuring compatibility with a wide range of devices. They are engineered with hot-swappable plug-in modules that can be conveniently mounted in a high-density 19" standard rack-mount chassis. For enhanced reliability, the rack-mount chassis supports a common power supply with optional power redundancy.
For stand-alone applications, the RS 232 media converter has a wall transformer that provides power through a one-pin connector. AC and DC power options are supported, with a DC input range of +5 to +15 VDC, offering operational flexibility.
Versitron M82xxD Series includes both DCE and DTE device options to accommodate varying system requirements:
M821xD units : DCE devices, typically used to connect to DTE devices.
M822xD units : DTE devices, designed for connection to DCE devices.
Built to withstand harsh industrial environments, this RS 232 to fiber converter operates reliably within a wide temperature range of -30°C to 70°C. It also incorporates advanced multiplexing capabilities, enabling the transmission of up to six asynchronous data streams using a single Fiber Optic MicroModem.
Applications of RS 232 to Fiber Converter
Underwater Data Communication
Used in university research projects to establish underwater communication links.
Enables reliable data transmission between submerged equipment for applications such as sea plankton monitoring.
Surface-Level Monitoring
Employed in above-water installations to monitor underwater equipment and related processes.
Aviation and Airport Operations
Critical for ensuring safe operations at airports by transmitting RS-232 switch control signals over fiber.
Enhances reliability and safety for systems involving lights, markings, and signs used by pilots and air traffic controllers.
Provides secure data transmission over long distances, with added protection against lightning strikes and EMI/RFI disturbances.
The M82xxD Series RS-232 fiber optic micro modem features a compact design, making it ideal for space-constrained applications. For environments without space limitations, VERSITRON offers RS-232 serial data to fiber converters in a circuit card format, known as FOM II, such as the F280xD model, which is well-suited for industrial and commercial network applications.
Application Diagram
RS-232 Fiber Optic Micromodem (M82xxD) Review:
Jim Atkins
4.0 out of 5 stars
July 19, 2023
Reliable and Flexible Connectivity: VERSITRON's RS-232 Fiber Optic Micromodem
I have been using the RS-232 Fiber Optic Micromodem M8213D from VERSITRON for quite some time now, and I am highly impressed with its performance and versatility. While comparing it with other products online, I discovered its compatibility with various digital interfaces, including RS-232, RS-423, and MIL-188-114A (Unbalanced). Many products make similar claims, but they often fall short. However, this micromodem has proven to be exceptional. We have invested in both single-mode and multi-mode versions of these modems and have successfully employed them for full-duplex, simplex, synchronous, or asynchronous protocols. The device's auto-sensing capabilities and fully transparent operation contribute to its reliability.
Another aspect that caught my attention was the ease of modem installation. Upon consulting with the VERSITRON team, I learned that the modem can be used to support Interface Extenders (DCE-DTE ) and modem links (DCE-DCE). This flexibility is truly amazing. Performance, data rate capabilities, temperature range, and ease of installation are some features that make it a highly commendable product in my opinion. You can take my words and consider this reliable micromodem to meet your connectivity needs.
General Specifications:
Dimensions
1.0 x 2.4 x 4.5 in. / 2.54 x 6.1 x 11.43 cm. (H x W x L)
Weight
.425 lbs / 0.2 kg
Operating Temperature
-30°C to 70°C
Storage Temperature
-40°C to 85°C
Relative Humidity
Up to 95% non-condensing
Altitude
Up to 10,000 ft
Electrical Interface
Power Requirements
+5 to +15VDC @300mA (M82xxD models may use host power on pin 9)
Protocol
Synchronous or Asynchronous (auto-sensing)
Data Rate
Continuously Variable from 1 bps to 128 Kbps Terminal Timing;
Operation
Full Duplex or Simplex
Error Rate
Better than 10⁻⁹
Connector
DCE – Female DB25 for M8213D, M8215D
M82xxD Digital Interface
RS-232, RS-423, MIL-188-114A (Unbalanced)
Product Models:
Model
Function
Connector
Fiber Cable
Wavelength
Link Budget
Max Distance
RFQ
M8213D
RS-232 - DCE
LC
MM
1310nm
11 ± 1 dB
2km
Request a Quote
M8223D
RS-232 – DTE
LC
MM
1310nm
11 ± 1 dB
2km
Request a Quote
M8215D
RS-232 – DCE
LC
SM
1310nm
19 ± 1 dB
20km
Request a Quote
M8225D
RS-232 – DTE
LC
SM
1310nm
19 ± 1 dB
20km
Request a Quote
Chassis and Accessories
Model
Description
MRR-16
16-Slot Rack Mount Chassis
M0004
100-240V/1A 47-63Hz to 12VDC Power Supply
M0001
Power Jumper 6” Cable. (One per Micromodem Required)
PSAC08
110VAC to 12VDC Power Adapter (USA)
PSAC09
220VAC to 12VDP Power Adapter (European)
M0011
RS-530 DCE to RS-449 DCE (Female) Adapter
M0012
RS-530 DTE to RS-449 DTE (Male) Adapter
M0013
RS-530 DCE to V.35 DCE (Female) Adapter
M0014
RS-530 DTE to V.35 DTE (Male) Adapter
M0021
DB25 Gender Changer, Male-to-Male
M0022
DB25 Gender Changer, Female-to-Female
Handshaking standard on all models
Multimode or Singlemode versions available
Small Compact Design for limited space installations
Mean Time Between Failure greater than 14 years
Fully Transparent Operation with independent data, clock and control lines
Installation as Modem Links (DCE-DCE) or Interface Extenders (DCE-DTE)
Optional use of Host Power with M82xxD Series Micromodems
Electrical Isolation eliminates ground potential rise and provides dielectric isolation
Standalone or 19” rack mounting with redundant power applications
Extruded Aluminum Housings for better protection and extended product life
Standards Conversion for RS-232, RS-423, MIL-188-114A (Unbalanced)
Compatible with VERSITRON FOM II series modems
