2-Channel HDTVI Video Installation Kit | Data, ST, MM

SKU:HDTVITR2A03

Free ground shipping for online store orders
Life Time Warranty
Free Unlimited Support

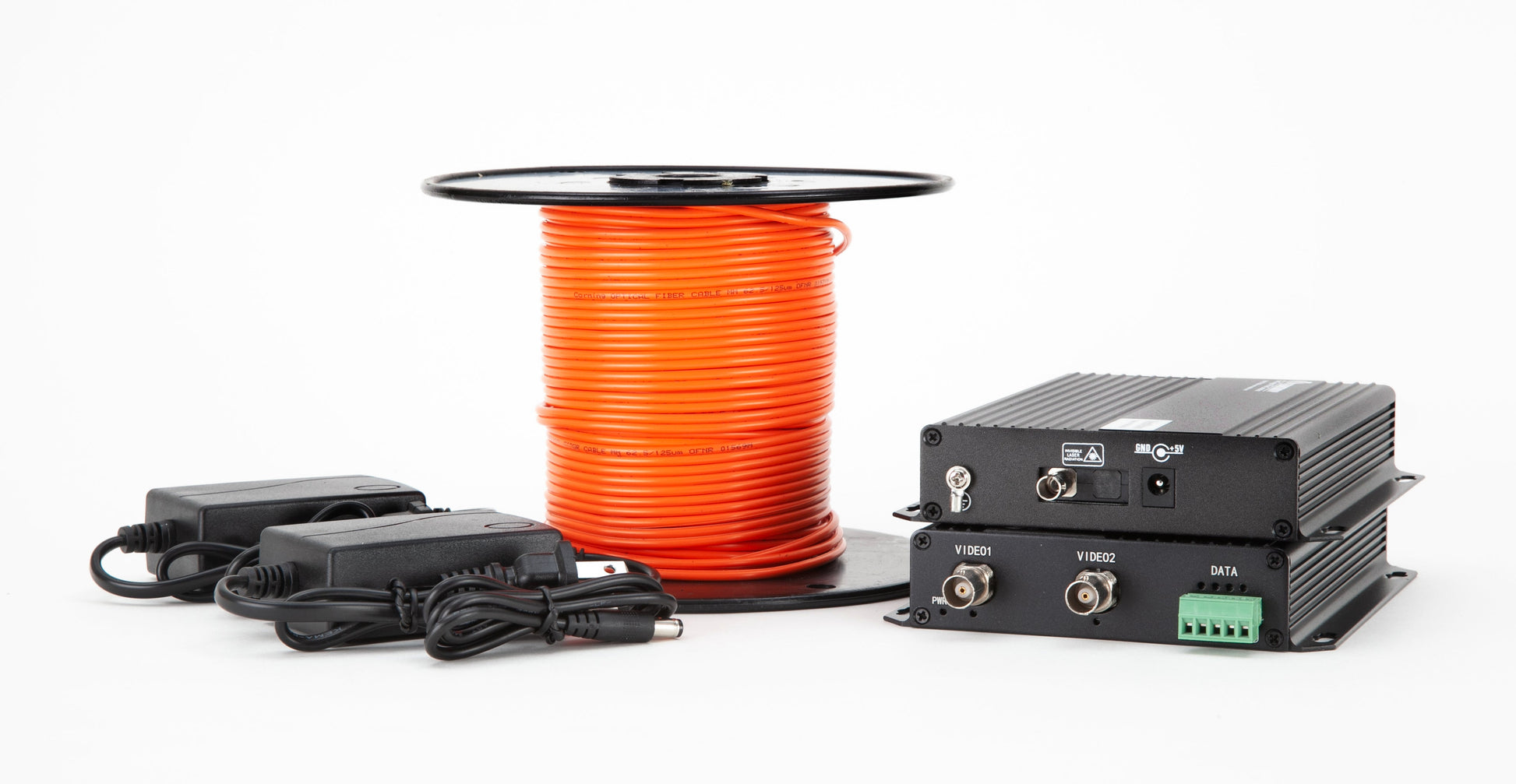

The HDTVITR2A03 installation kit supports 2 channels of 8-bit digitally encoded HD-TVI video as well as 1 channel of bi-directional data. The kit includes transmitter, receiver, power supplies, and 100 meters of Multimode fiber optic cable.

View full details

2 Channels HDTVI Video Transmitter & Receiver

The optimized optical modules are compatible with 1280H/30F, 1280H/50F, and 1280/60F to ensure the highest performance for the most demanding applications. The devices are directly compatible with NTSC, PAL, and SECAM camera systems. These units support 1 channel of Bi-Directional RS-485 data. RS-422 and RS-232 are available upon request.

Video Input	0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface	HD-TVI
Input/Output Channels	2
Bandwidth	5 Hz – 8 MHz
Bit Resolution	8-Bit
Differential Gain	<±1%
Differential Phase	<±1°
Tilt	< 1%
S/N Ratio:	60dB (Weighted)
Wavelength	850/1310nm
Number of Fibers	1
Optical Connector	ST
Video Connector	BNC
Power Supply	5VDC, 2A
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (non-condensing)
Data Interface	RS-485 (RS-422 or RS-232 Optional)
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
Data Contact	Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 Channels HDTVI Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
