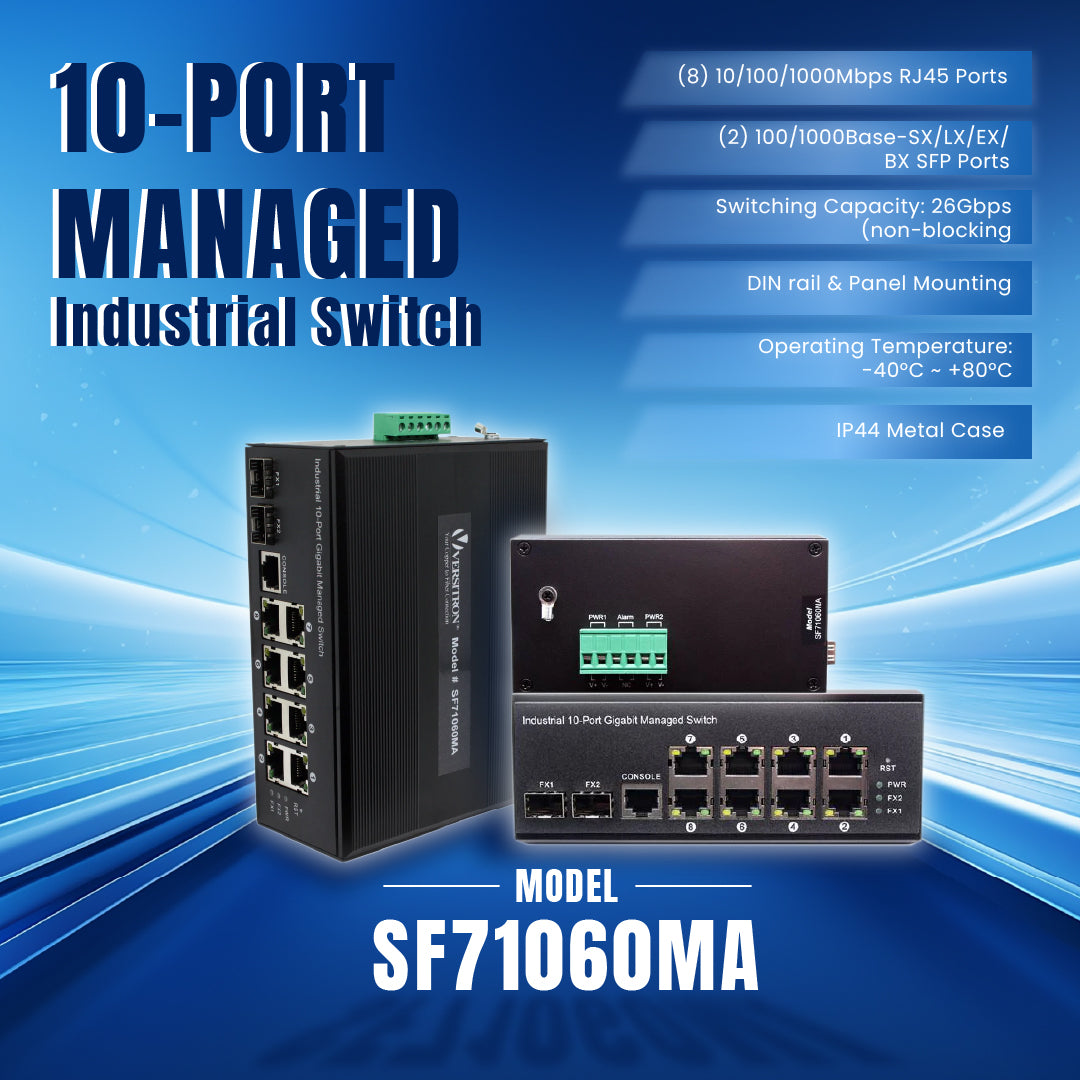

VERSITRON’s 10-port managed industrial switch model SF71060MA is a ruggedized switch designed for challenging industrial environments. It is a standard layer 2 switch with eight 10/100/1000Base-T Gigabit Ethernet RJ-45 ports to connect nearby Fast Ethernet and Gigabit networking devices and two 100/1000Base-SX/LX SFP type ports for high-bandwidth, long-distance connections.
This 10 Gigabit managed switch has non-blocking, store-and-forward switching architecture, back pressure, and IEEE 802.3x PAUSE Frame Flow Control mechanisms that work in combination to assure efficient data transfer wit hout packet loss. The RJ45 ports have an auto-negotiation feature that helps automatically detect the type of connection, such as half or full duplex and speeds such as 10/100/1000 Mbps. Adding to this, the auto MDI/MDIX supports seamless integration on networking devices. Auto MDI/MDIX can easily adjust their signals to match the connected device, eliminating the need for new cables.
VERSITRON’s 10-port managed industrial switch can be configured in ring or point-to-point setups, ensuring network redundancy. The Embedded Surveillance Device Management System enables real-time monitoring of the switch's health. It allows users to troubleshoot proactively, thereby assuring optimal network performance.
The SFP ports enable flexible network configurations using SFP transceivers offered by VERSITRON. These transceivers allow users to optimize the value of their fiber investments in environments where electromagnetic interference is a key concern, such as industrial units. The switch is adaptable to different network demands. It supports interchangeable SFPs for different fiber types, distances, and connectors, enabling customization depending on the application requirements. This switch assures versatility in deployment as you can connect it over single or multimode fiber cables for up to 100 km.
This 10-port industrial Ethernet switch is designed to withstand operational challenges such as vibrations, surges, ambient temperatures, and shocks in industrial environments. It features redundant dual power supply inputs, 4KV Ethernet surge protection, and assures superior reliability across a wide operating temperature range from -40°C to 80°C. The switch is offered with a compact, corrosion-resistant case with a DIN rail attachment that enhances its suitability for industrial environments.
Typical Applications
Industrial Automation
Surveillance systems
Access control systems
Communication networks
Copper Ports (RJ45)
8-10/100/1000Base-T
SFP Uplink Ports
2-100/1000Base-SX/LX/EX/BX SFP
Port Configuration
Auto MDI/MDI-X
Port Speed
Auto-negotiate
Switch Architecture
Store-and-forward
Switch Bandwidth
26Gbps (non-blocking)
MAC Address
8K Entries
Maximum Frame Size
9.6K Bytes (Jumbo Frames)
Flow Control
Back pressure (Half-Duplex) IEEE 802.3x Pause Frame (Full-Duplex)
Fiber Data Rate
1000Base-SX/LX/EX/BX
Fiber Connector
SFP (Mini-GBIC) port
Fiber Type/Distance
Varies by SFP Module
Power Pin Assignment
½ (+), 3/6(-) default
LED Indicators
Power: On/Green Ethernet: 10/100 LNK/ACT – Amber 1000 LNK/ACT – Green SFP Port: On/Blink – Green
Management Interface
Console CLI, telnet, Web browser, SSH/SSL secure access SNMPv1 and v2c and v3c
Port Configuration
Enable/disable; Auto-negotiation; 10/100/1000Mbps full-and-half duplex mode selection; Flow control
Port Mirroring
TX/RX Both; Many to 1 monitoring
Bandwidth Control
Ingress/Egress rate control: Configure (100~1000000Kbps) Full Speed 1000000Kbps
VLAN
IEEE 802.1q tagged-based VLAN Up to 256 VLANs groups, out of 4094 VLAN IDs Port-Based VLAN, Q-in-Q tunneling Mac-based VLAN, up to 256 VLANs Protocol-based VLAN, up to 128 VLANs MVR (Multiple VLAN Registration)
Link Aggregation
IEEE 802.3ad LACP / Static Trunk; Up to 5 groups of trunk supported
QoS
8 priority queue Traffic classification based on: IEEE802.1p Based Cos, IP DSCP Based Cos,
Multicasting/IGMP
IGMP/MLD Snooping (v1,v2,v3) With Query supported
Access Control List
IP-Based ACL/MAC-Based ACL, 256 entries
SNMP MIBs
RFC-1213 MIB-II RFC-2819 RMON MIB (Group 1,2,3,9)
Power Input Voltage
100-240VAC, 50/60Hz
Full Load Power Consumption
9 Watts
Dimensions
156 x 114.8 x 60mm
Case
IP44 Metal Case
Housing
DIN Rail Mounting
MTBF
>100,000 hours
Operating Temperature
-40°C ~ +80°C
Storage Temperature
-40°C ~ +80°C
Relative Humidity
0% ~ 95% (non-condensing)
8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
2-Port 100/1000Base-SX/LX/EX/BX SFP Type Ports
Non-blocking store-and-forward switching
RJ45 Port Supports 10/100/1000Mbps‐Full/Half‐duplex, Auto‐negotiation, Auto‐MDI/MDIX
Prevents Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex)
Available for operation in Ring or point-to-point configuration
Real-time monitoring via Embedded Surveillance Device Management System
Uses interchangeable SFP for fiber type, distance and connector (Ordered separately).
Distances up to 100 km with optional SFPs
Available for operation over single mode or multimode fiber over a variety of link budget
Available for operation over 1 or 2 fibers
No in-field optical adjustment required
Redundant dual power supply inputs 48/52 VDC
4KV Ethernet Surge Protection for harsh environment
-40°C to 80°C (-40°F to 176°F) wide range operating temperature
Compact, corrosion resistant case attaches to a standard DIN Rails
