8 Channel HDTVI Video Installation Kit
The optimized optical modules are compatible with 1280H/30F, 1280H/50F, and 1280/60F to ensure the highest performance for the most demanding applications. The devices are directly compatible with NTSC, PAL, and SECAM camera systems.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-TVI
Input/Output Channels
8
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
< 1%
S/N Ratio:
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)

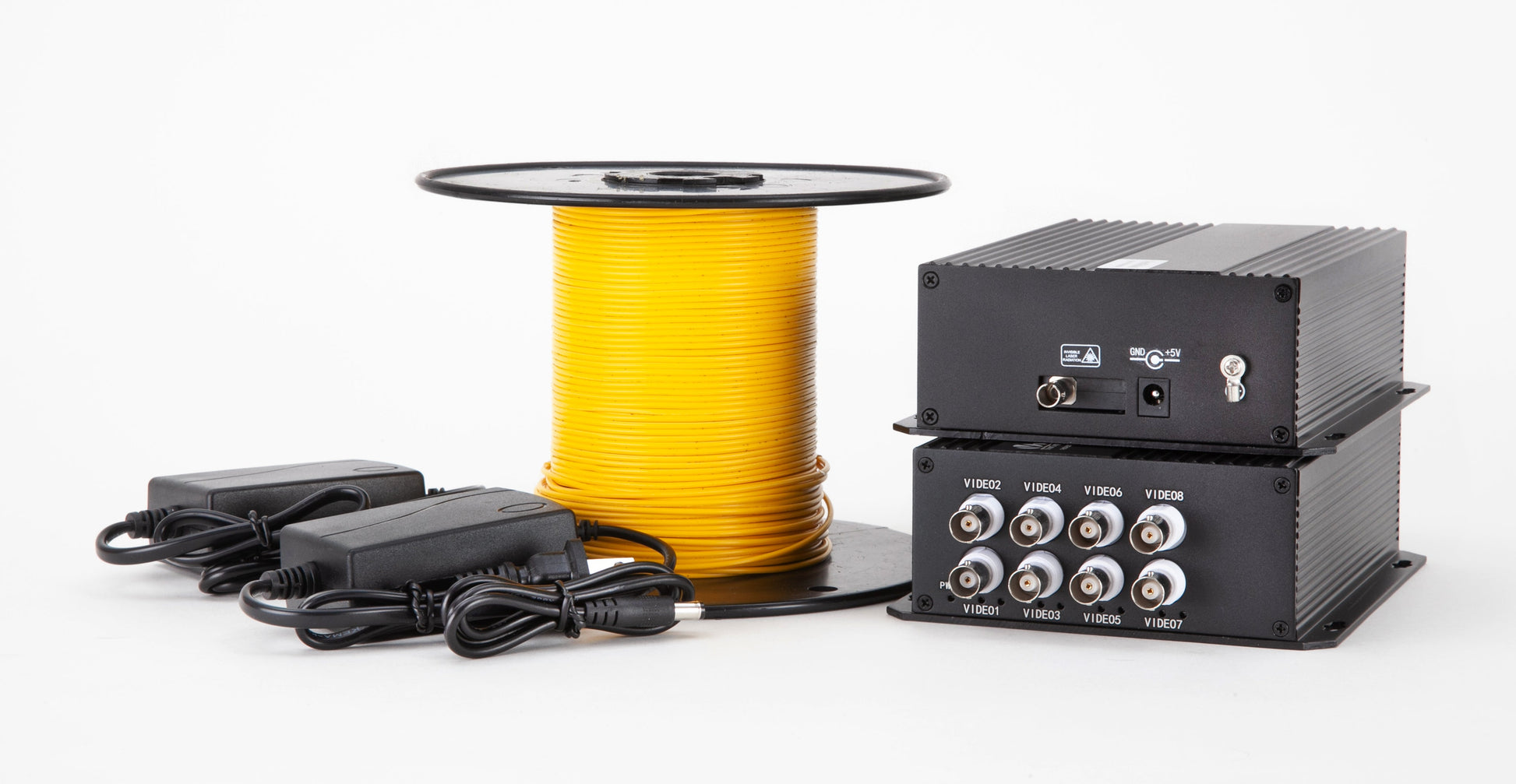

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 8 Channel HDTVI Video Installation Kit
8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis , HD-SDI , HDMI
